[RFC] Adding Matching and Inference Functionality to Propeller

IR & Optimizations
23

I believe that adding an edge profile is orthogonal to the work of this RFC. To introduce matching & inference, the key lies in how the Hash information of MBBs should be presented in the profile and how it can be ultimately utilized.

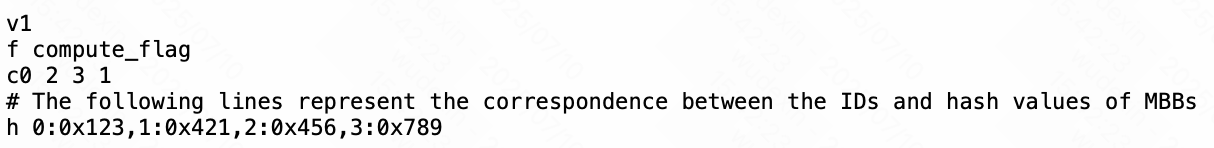

Regarding the profile format, we can add a line under each function in the current profile to provide the Hash value of each MBB, with the format as follows. This way, it will not affect the original functionality of Propeller, and we can also perform matching & inference based on the Hash values of MBBs in the compiler.

截屏2025-07-10 15.42.27
截屏2025-07-10 15.42.271214×148 16.7 KB

24

We have re-optimized the implementation of this technology. In the new implementation, we have made every effort to avoid introducing new compilation parameters while ensuring compatibility with the current usage of Propeller. Instead of introducing a new profile format, we reused the existing profile format employed by Propeller. Specifically, we enabled the CFG profile switch in the cluster profile and added a new line containing the hash value for each basic block. The format of the new line is:

h <bb_id>:<bb_hash> <bb_id>:<bb_hash> <bb_id>:<bb_hash> ...

A simple complete profile example is:

V1
f foo
c0 1 3
w 0:100,1:100,2:0 1:100,3:100 2:0,3:0 3:100
h 0:10838971302264569856 1:10005270435075325958 2:10005130895882846216 3:17705462075698380809

Through optimization, the code changes have been significantly reduced, and the usage of this technology remains largely consistent with the original Propeller. Specific examples are as follows:

  1. Build the base binary: Use the -emit-bb-hash parameter to add basic block hashes in the basic block address map.
clang++ -O2 -gline-tables-only -fdebug-info-for-profiling -funique-internal-linkage-names -fbasic-block-address-map -mllvm,-emit-bb-hash code.cc -o base_code
  1. Generate the profile: Use --write_cfg_profile to enable Propeller’s existing CFG profile, and use --write-bb-hash to generate hash values for each basic block.
perf record -b ./base_code
./generate_propeller_profiles \
  --write_cfg_profile \
  --write-bb-hash \
  --binary=./base_code \
  --profile=perf.data \
  --cc_profile=cluster.txt \
  --ld_profile=symorder.txt
  1. Recompile for optimization: The only difference from the original Propeller is the use of -propeller-match-infer to enable matching and inference.
clang++ -O2 -gline-tables-only -fdebug-info-for-profiling -funique-internal-linkage-names \
  -fbasic-block-sections=list=cluster.txt -mllvm,-propeller-match-infer \
  -Wl,--no-warn-symbol-ordering -Wl,--symbol-ordering-file=symorder.txt -fuse-ld=lld code.cc -o base_code

We have submitted a patch for our new implementation (https://github.com/llvm/llvm-project/pull/160706) and also forked the llvm-propeller repository to add changes to the Propeller profile tool (https://github.com/wdx727/llvm-propeller/tree/propeller-match-infer). This change is planned to be submitted after the LLVM patch is merged.

We welcome everyone to review our new implementation. @rlavaee @tmsriram
